Histopathology of intersymphyseal band and its correlation with continence in bladder exstrophy repair

Abstract

Background

Urinary incontinence is a major problem in operated exstrophy patients. Most of the repairs described in literature stress on the importance of dividing the intersymphyseal band (ISB) to place the bladder in the pelvis. But the origin of this band and its importance has hardly been discussed in literature. The purpose of this study is to establish the nature of tissue the ISB is composed of. This can be used to determine its role in the surgical management of exstrophy epispadias complex (EEC) patients.

Results

Thirty out of 33 operated patients demonstrated smooth muscle with/without fibrous tissue in the sections taken through the ISB.

A significant percentage of patients (χ2 = 38.319, p < 0.0001) in whom this band was reconstructed around the bladder neck gradually became continent/partly continent with an increase in the dry interval with time.

Conclusion

It can be a considerable factor to pay attention to the step of wrapping the ISB around the bladder neck during EEC repair. This serves to function as the smooth muscle of the bladder neck as proven histologically in our operated patients. It may have a role to support future continence in these patients.

Background

The importance of the intersymphyseal band (ISB) in the repair of exstrophy-epispadias complex (EEC) is highlighted in the need to divide this band in order to push the bladder into the pelvis [1]. The origin of this structure considering its normal anatomic counterpart largely remains vague. Our study attempts to define the origin of this structure by using histopathology to establish that this structure actually represents the smooth muscle of the bladder neck.

The role of the bladder neck musculature in normal urinary continence is well known. Dynamic resistance offered at the level of the bladder outlet requires smooth coordination between the bladder neck and the detrusor muscle to keep an individual dry until he/she volitionally voids [2]. To achieve this normal physiology, normal anatomy must be restored.

Instead of merely dividing the ISB during primary exstrophy repair, reconstruction of this band by wrapping it around the bladder neck restores normal anatomy in EEC patients. This reconstructed ISB may play a significant role in keeping patients dry post-operatively. This is because it now helps to develop a near normal mechanism of providing a dynamic resistance to urine flow at the bladder neck or outlet.

Our study thus hypothesizes that the ISB represents nothing but the smooth muscle of the bladder neck and plays a significant role in making operated EEC patients’ continent.

Methods

Data from the 33 patients of EEC who had undergone anatomical repair of EEC was collected after screening for inclusion and exclusion criteria from 2003 to date. These comprised of 16 males (48.5%) and 17 females (51.5%).

The average age at which surgery was done was 1.78 years (range 8 months to 6 years) with a median of 0.67 years (8 months). Primary repair was deferred till 8 months of age due to higher incidence of post-operative sepsis in younger neonates and infants.

The patients were divided into 2 groups:

  1. 1.

    Primary repair cases: 26 in number (78.8%) and

  2. 2.

    Redo cases: 7 in number (21.2%) who had developed wound dehiscence after primary repair.

Inclusion criteria

  1. 1.

    All cases of primary and failed exstrophy repair.

  2. 2.

    Only those cases in whom intraoperative biopsy of the ISB was taken and sent for histopathology

  3. 3.

    Follow-up data was available

Exclusion criteria

  1. 1.

    For the histopathological analysis, no patients were excluded.

  2. 2.

    For the assessment of continence, recently operated patients (< 6 months), patients undergoing augmentation cystoplasty and those lost to follow-up were excluded.

Study center

The data from patients was collected from various centres to which the author is affiliated.

Study procedure

The data related to following parameters was collected and entered in the excel sheet for each of the primary and redo cases of EEC:

  1. 1.

    Biopsy report of ISB: the histopathological staining method used was the hematoxylin and eosin stain to demonstrate the tissue forming the ISB. Two types of tissue were found to be present:

    1. a.

      Smooth muscle bundles appeared as sheets of spindle shaped cells with a central nucleus without striations.

    2. b.

      Collagenous tissue arranged haphazardly suggestive of fibrosis.

  2. 2.

    Achievement of continence: Continence was defined as the ability to hold urine and void volitionally without leaking urine in between voids. The criteria used to measure this were the long-term measure of the dry interval of successfully operated exstrophy patients by anatomical repair procedure.

  3. 3.

    Continence was correlated with the nature of tissue in the ISB using statistical analysis—chi-square test.

Operative procedure

In all patients, the surgery carried out was the anatomical repair of exstrophy as mentioned in a previous article by the same author [2]. During surgery, the ISBs were clearly defined on either side of the bladder plate and cut from their attachment to the superior pubic rami (Fig. 1). These bands are whitish in color in contrast to red striated musculature of pelvic floor. Their attachment to bladder was left as such. Biopsies were taken from the ISB at the site of attachment to pubic bones on either side. The bands were then approximated in the midline over a closed bladder at the level of its outlet (Fig. 2).

Fig. 1
figure 1

Intraoperative photograph showing the dissected Intersymphyseal bands (yellow arrows)

Fig. 2
figure 2

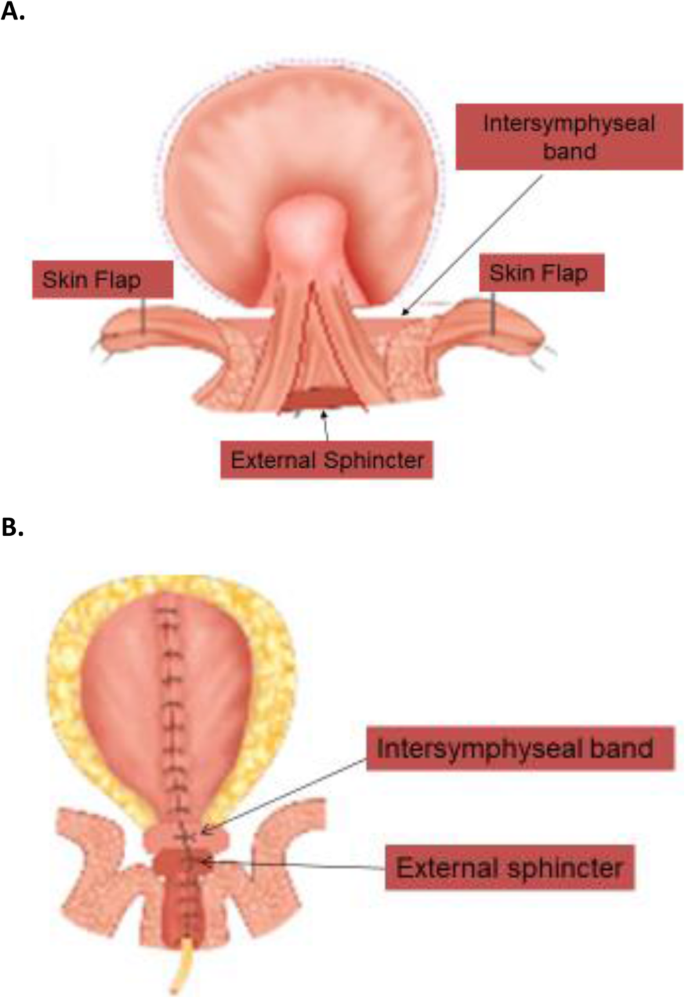

a Intraoperative anatomy of internal and external sphincter. b Reconstructed sphincters in anatomical repair of bladder exstrophy

Post-operatively, all patients were started on chemoprophylaxis and oxybutynin.

Assessment of continence was started 6 months post-operatively and then yearly. Bladder growth and capacity as well as status of the upper tracts was also assessed using ultrasound examination (US), sometimes along with micturating cystourethrogram (MCU) in the same follow-up.

Results

Descriptive statistics and chi-square test.

Results

All the patients had undergone successful anatomical repair of exstrophy [3].

Histopathology study

On histopathological analysis of the ISB in the 26 primary cases operated, 25 patients showed smooth muscle (Fig. 3). One patient had a mixture of smooth muscle and fibrosis.

Fig. 3
figure 3

Histopathological Hand E stain of the ISB showing smooth muscle bundles

In case of the redo surgeries, 4 out of the 7 patients had fibrosis in the histopathology report. The remaining 3 patients had a mixture of smooth muscle and fibrosis (Table 1).

Table 1 Histopathological findings in primary and re-operated patients

The pie diagram (Fig. 4) summarizes the histopathology findings in all the patients of the study.

Fig. 4
figure 4

Pie chart depicting histopathological findings in all patients operated

Continence study

Among the 26 primarily operated patients, 1 patient had to undergo a primary ileocystoplasty due to a minute non-pliable bladder plate not having any potential to grow. This patient has not been included in the continence study.

Twenty-two patients showed a progressive improvement in the dry interval and volitional voiding ability. There was a significant increase in the voided volume as the age and time interval from surgery increased. The US/MCU also documented an increase in bladder capacity (Fig. 5).

Fig. 5
figure 5

MCU showing bladder growth post-operatively in an exstrophy patient with a closed bladder neck

The graph (Fig. 6) below shows the definite positive association of the increase in bladder capacity measured on US with the years since surgery was performed.

Fig. 6
figure 6

Graph depicting correlation of bladder capacity with time since surgery

We would like to mention that the maximum dry interval that we have achieved to date in all our operated patients is 3 h with volitional voiding. This was mainly achieved 8 years of surgery after which there was no further increase in dry interval.

There was also no deterioration in the status of the upper tracts as measured by regular US.

The remaining 3 patients in this group were incontinent. Of these, one patient has had repeated fungal infections with cystitis which were inadequately treated due to poor compliance. He is now under observation after successful treatment for the same to look for improvement in continence levels.

Among the 7 re-operated patients, 1 patient was lost to follow-up, 3 patients were partly continent with ability to volitionally void but with a shorter dry interval, and 3 patients remained incontinent.

Correlation of histopathology with continence

Table 2 followed by the bar chart (Fig. 7) depicts the above correlation using the chi-square test.

Table 2 Continence status in patients with different histopathological findings
Fig. 7
figure 7

Bar chart depicting continence status in patients with different histopathological findings

Discussion

The intersymphyseal band (ISB) is an important structure encountered during repair of EEC. This thick band of tissue runs from the exposed bladder plate to the splayed pubic rami and must be divided in order to place the bladder in the pelvis [1].

The origin of this structure considering its normal anatomic counterpart has rarely been studied in literature [4, 5]. Our attempt to ascertain its origin to the smooth muscle of the bladder neck was to underline its importance in providing continence if properly reconstructed during primary repair of EEC patients.

Normal urinary continence is a complex phenomenon. It depends on a host of factors including bladder compliance and capacity, the integrity of the bladder neck, external urethral sphincter, and an intact nerve supply of the bladder.

Dynamic resistance at the bladder outlet is a well-orchestrated program which makes the bladder neck contract in response to distension of the bladder wall. The smooth muscle of the bladder neck, we believe, is the keystone to remaining dry as the bladder begins to distend with urine up to the point of voluntary voiding or attaining full capacity. It acts even before the first urge to void is felt.

The continence problems faced by operated exstrophy patients occur mainly because of 3 factors:

  1. 1.

    Inadequate bladder capacity

  2. 2.

    Non-compliant bladder

  3. 3.

    Improper bladder neck reconstruction

Having emphasized the importance of the bladder neck smooth muscle, we stress that it is represented by the intersymphyseal band (ISB) in exstrophy patients. This is proved by demonstrating smooth muscle in histopathological sections taken from the ISB during surgery. This band essentially provides the dynamic outlet resistance required in the process of achieving continence. It should hence be preserved and repositioned in its anatomical location, around the bladder neck in the primary surgery itself.

To preserve the nerve supply for adequate physiological function, we insist that during surgery, mobilization of the bladder plate should not extend beyond the uretero-vesical junction.

We think that a well-reconstructed bladder outlet during primary repair of exstrophy patients goes a long way in not only providing dynamic outlet resistance for continence, but also a stimulus for the bladder to grow. This then helps to increase the dry interval further by an increase in bladder capacity.

Because of our practical constraints, we do surgery at the age of 8 months. If repair is done in the neonatal period, it would further prevent bladder wall inflammation and fibrosis thus increasing the potential in further improvement in bladder capacity.

A fairly well-grown bladder with a good outlet averts the need of augmentation, which has its own complications. The operated exstrophy patients can be continent with a dry interval of 3 h.

In the cases of redo or staged procedures for repair, the ISB is replaced in part or totally by fibrous tissue. Hence, its ability to provide the dynamic resistance as in muscle is significantly affected. We found that these patients had suboptimal continence levels and many required urinary diversion to solve their problems.

An ideal repair of exstrophy would be one which relocates tissue in their normal anatomical position. The two main procedures widely used today in the repair of exstrophy patients include the complete primary repair of exstrophy (CPRE) [6] and the modern staged repair of exstrophy (MSRE) [7]. Both these methods stress on the importance of dividing the ISB to place the bladder and the posterior urethra deep in the pelvis.

In fact, the author John Brock has advocated the use of a single midline incision through the ISB to place the bladder deep in the pelvis [8].

Thus, the construction of a bladder neck using the ISB is not a part of these procedures.

A few studies have included this step in their procedures.

V. Bhatnagar [9] closed the ISB at the junction of the tubularized paraexstrophy flaps and the bladder. This method adopts a staged approach for closure.

The modified CPRE technique described by Kurbet et al. [10] also includes the wrapping of the ISB around the bladder neck.

The single case reported by Senoh and Yamaguchi [11] has stressed on the fact that closing the ISB around the bladder neck is the single most important factor that ensures urinary continence in exstrophy patients.

The original research by Wakim et al. [12] on 28-week gestation foetuses studies the musculoskeletal organisation of the urogenital system in classic bladder exstrophy patients. This article also emphasizes the need to preserve and repair these structures during surgery.

The added importance of the external urethral sphincter in continence has been studied by Kureel et al. [13, 14]. Their method includes anatomical repair along with innervation preserving sphincteroplasty of the skeletal muscle of the urogenital diaphragm by dissection in the subperiosteal plane. The continence rates achieved were 71.4% in single-stage exstrophy repair.

In our previous study of 2004, we too have mentioned about the importance of reconstructing both, the external and internal sphincter [3].

In this study, now we have gone a step further to emphasize this fact by demonstrating that there is smooth muscle in this ISB in all our primarily operated patients.

The smooth muscle of the ISB thus gives dynamic continence in addition to voluntary control of urination provided by the striated muscle of the external urethral sphincter.

Conclusions

The ISB represents the smooth muscle of the bladder neck in patients of exstrophy.

This band with its intact nerve supply needs to be wrapped around the bladder neck during the primary repair itself to preserve the smooth muscle that it contains. A well-constructed bladder outlet is one of the important factors to give the best chance for development of the bladder as well as acceptable social continence.

Repeated surgeries that involve dissection in this area replace the smooth muscle of the ISB with fibrosis which then has a direct impact on continence. Hence, successful single-stage repair should be the aim of reconstruction.

Limitations of study

It would be expected to have a control group but due to the severity and frequency of this disease, it is not easy to obtain comparable two groups at a same time.
