A fetus excised from the small intestinal mesentery of a neonate (fetus in fetu): a case report

Abstract

Background

Fetus in fetu is a rare congenital anomaly. Its incidence is 1/500,000 births. So, pediatric surgeons may encounter this pathology only once or twice during their professional careers.

Case presentation

We present a rare case of a fetus extracted from the small intestinal mesentery of a healthy neonate who was explored after delivery. The extracted fetal mass included a fully differentiated skull and limbs with a celomic cavity. The fetal mass was supplied by a main feeding vessel branching from the superior mesenteric artery.

Conclusion

Fetus in fetu, despite being a rare variant, must be kept in mind when dealing with a neonatal abdominal mass showing bony parts on radiography.

Background

Fetus in fetu (FIF) is a rare congenital anomaly. Its incidence is 1/500,000 births [1]. So, pediatric surgeons may encounter this pathology only once or twice during their professional careers [2].

FIF was first described by Johann Friedrich in the early nineteenth century [3]. It was later defined by Willis as a mass containing a vertebral axis, often with an appropriate arrangement of limbs or other organs around this axis [3].

Gonzalez-Crussi confirmed this definition, describing FIF as “a highly organo-typic development with vertebral axis and mature circumferential tissue arrangement” [4].

The relationship between teratoma and FIF is vague with no clear difference between them. While teratoma is a true neoplasm composed of multiple tissues foreign to the part in which it arises [5], some writers emphasize the presence of the vertebral column as a distinct feature in diagnosing FIF [6]. FIF is characterized by organized vertebral, musculoskeletal, and organ structures that may resemble the fetus [7]. Parasitic twins are joined to an otherwise relatively normal fetus in one of the same sites of union as intact conjoined twins. They usually consist of externally attached supernumerary limbs, not infrequently with some viscera, but very rarely with a functional heart or brain [8].

Many theories were proposed to explain the etiology of FIF^[9]. The most prevalent hypothesis is that it is due to an embryological insult in a diamniotic mono-chorionic pregnancy with an unequal division of the totipotent inner cell mass within the developing blastocyst which results in small cell mass within a maturing sister embryo [9].

To qualify as an FIF, one of the following characteristics must be present: a mass enclosed within a distinct sac, partially or completed covered by skin, grossly recognizable anatomic features, and attached to the host by a pedicle containing a few relatively large blood vessels [6]. FIF tumors are usually single, rarely multiple, and are genetically identical to their host, as proven by karyotyping and DNA analysis [10, 11].

Case presentation

A 27-years-old female followed up her second pregnancy with her gynecologist who suspected an abnormal mass in the fetal abdomen at the 6th month of pregnancy (Fig. 1), by routine pregnancy ultrasonography. Her first baby is a 2-year-old healthy male with no congenital anomalies.

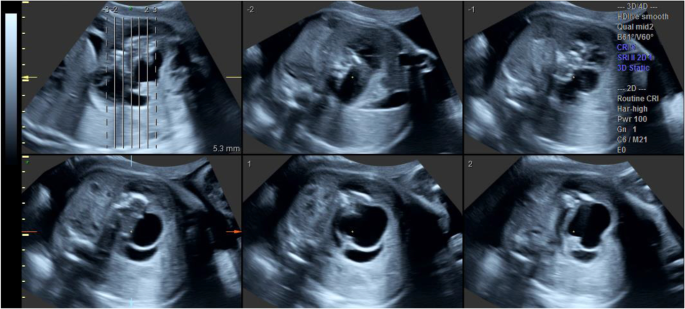

Fig. 1

Prenatal ultrasound showing a polycystic abdominal swelling in the fetus

Four-dimension (4D) ultrasonography (Fig. 2) described a polycystic mass in the left side of the baby’s abdomen suspecting complicated meconium ileus. At full term, delivery was done by cesarean section.

Fig. 2

4D pregnancy ultrasound of the fetus

Inspection of the abdomen revealed moderate abdominal distention, dilated veins over the anterior abdominal wall, and erythematous patches over the skin of the left lumbar region.

Superficial palpation of the abdomen revealed partially solid-partially cystic mass occupying the whole left side of the abdomen and crossing midline.

The baby was admitted immediately to NICU. Rectal examination revealed regular meconium. Plain erect X-ray was done which revealed no fluid levels nor pneumoperitoneum, so oral feeding was started and bowel movements were normal so meconium ileus was excluded. Echocardiography was done which revealed a small ASD ostium secondum.

Laboratory investigations revealed a total leucocytic count of 9.76 × 10³/μL with 33% neutrophils.

Multi-slice CT for the abdomen and pelvis (Fig. 3) was done for the baby after 24 h of delivery which revealed a large retroperitoneal mass measuring 78 × 67 × 50 mm with well-defined margins. It appeared hypodense with multilocular cystic areas, containing calcified structures in a configuration of fetal bones (skull, spines, femur, and pelvic bones). The mass was displacing the bowel loops upwards and laterally (Fig. 3).

Fig. 3

Multislice CT of the abdomen and pelvis of the newborn baby after delivery. a, b Showing the ossified bony parts within the fetal abdomen. c A 3D reconstruction image of the suspected mass

Operative details

At the age of 3 days and after routine laboratory investigations, informed consent was obtained to proceed with surgery. Under general anesthesia, supra-umbilical transverse exploratory incision was done.

Yellowish sero-purulent fluid was found free in the peritoneal cavity. Suction and lavage were done. A mass was found enclosed within the mesentery of the jejunum just near the Dudeno-Jejunal junction with a skull covered by fetal hair looking through the transparent mesentery (Fig. 4).

Fig. 4

The skull of the fetus bulging through the small intestinal mesentery of the delivered baby

The inferior layer of the mesentery was incised and bluntly dissected over the sac covering the mass. An artery was found branching from the superior mesenteric artery and passing through the sac till the umbilical area of the baby looking like an umbilical artery feeding the mass (Fig. 5). This artery was ligated and divided. Other smaller discrete vessels coming from superior mesenteric vessels to different areas of the mass were ligated and divided as well.

Fig. 5

The extracted fetal mass based on a main feeding vessel (black arrow)

The mass was extracted (Fig. 6) and the abdomen was explored thoroughly to exclude other anomalies. The peritoneal cavity was then irrigated and mass closure was performed. No drains were inserted.

Fig. 6

Extracted fetal mass

Post-operative course

Post-operatively the infant was transferred back to NICU. Bowel movement was regained within 24 h and feeding was started gradually by suckling and full feeding was reached within 48 h post-operatively. The baby was discharged home on the fourth post-operative day with a total hospitalization of 1 week and followed up in OPD for wound dressing and for 6 months later and has been doing well during his follow-up with no complications.

Details about the extracted fetal mass

Opening the membranes over the mass revealed what looked like a fetus folded ventrally over the caelomic cavity with ventral hernia revealing incomplete parts of the gut. The fetus showed flexed upper and lower limbs over the abdomen. A male genital bud was found in its normal location (Fig. 7).

Fig. 7

The extracted fetal mass after opening of the membranes showing a head and flexed upper and lower limbs

The fetal mass was sent for histopathological examination. Histopathological examination of sections from different parts of the fetus revealed the presence of vertebral bone trabeculae with bone marrow spaces, cartilaginous foci, covering skin with adnexa, islands of mucosa together with fetal membranes, and chorionic villi. No evidence of immature tissues or neoplastic transformation was seen in the examined sections.

Discussion

Our fetal mass was found retroperitoneal in the mesentery of the small intestine. In 70% of the reported cases, the main presenting complaint was an abdominal mass, of which 80% were predominantly retroperitoneal [9].

However, it may also be found in more uncommon sites, such as the oral cavity, sacrococcygeal region, and scrotum [12,13,14]. Other even rarer localizations, such as intracranial FIF, have also been reported [5, 8].

Our case was diagnosed as an abdominal mass intra-uterine in late pregnancy the highly suspicion of being FIF by CT was just after birth. In most cases, and in concurrence with published reports, FIF presented during infancy by symptoms suggestive of abdominal distension, as well as feeding or respiratory difficulties. Only a few reported cases were above the age of 2 years [2].

CT scan was the most commonly used diagnostic modality in a study in 2019 by Taher et al. [2], with a preoperatively confirmed diagnosis in four cases and findings strongly suggestive of FIF, such as long bone structures and vertebrae, in four patients (sensitivity 80%). The latter are the typical findings that differentiate FIF from other causes of intra-abdominal calcification, including teratoma, meconium pseudocyst, neuroblastoma, adrenal hemorrhage, and viral infection [2].

Although most cases of FIF can be resected easily, the vascular supply can be variable and therefore presents a potential pitfall during the operation. Others agree that resection of FIF requires great care during dissection of the vessels to avoid unintended injury [15]. Resection of our FIF was easy after opening the peritoneum over the mass then blunt dissection of the whole mass out of the retroperoperitoneum.

While most isolated cases of FIF with aortic blood supply are easily removed, adherence to surrounding structures can complicate the procedure immensely [2].

Potential for malignant transformation is rare in FIF since only one case has been reported in literature [16]. In an earlier study, only a patient who succumbed after the biliary leak was found to have immature elements in the histopathologic analysis [16]. Complete excision of FIF is therefore curative in most cases, regular scheduled follow-up by tumor markers (such as AFP, β-hCG, and carcinoembryonic antigen) and abdominal ultrasound seem necessary only in cases with immature tissue components [2].

Conclusion

Fetus in fetu, despite being a rare variant, must be kept in mind when dealing with a neonatal abdominal mass showing bony parts on radiography.
