Upper gastrointestinal series in children: what surgeons need to know

Abstract

Background

Upper gastrointestinal (UGI) series is the standard imaging tool for diagnosis of structural and functional abnormalities affecting the esophagus, stomach, and proximal small bowel. The aim of this study was to delineate the clinical indications for UGI series in children that are associated with the presence of significant radiological abnormalities aiming for more standardized care for those patients.

Results

UGI series of 118 patients was analyzed with calculation of clinical score. Vomiting was the most frequent primary complaint (63.6%), followed by dysphagia and recurrent chest infection. Forty-nine patients had positive upper GI findings (42%). The most detected abnormality was related to the stomach and duodenum (21.4%). Variable degrees of idiopathic gastroesophageal reflux were detected in 16 patients (13.6%). Patients with clinical score 2 or more had significantly more prevalence of abnormal findings (p = .001). Vomiting (especially when bilious), underweight, aspiration, and recurrent chest infection were strong predictors of abnormal findings on upper GI series (p = 0.007, 0.001, 0.009, and 0.001, respectively) and increased the diagnostic yield of upper GI series for detection of abnormalities by 3.48, 9.6, 4, and 4.12 times, respectively.

Conclusion

Diagnostic yield of UGI series was relatively higher in patients having two or more symptoms (clinical score 2 or more) and in children with bilious vomiting, aspiration and underweight, or repeated chest infection.

Background

Upper gastrointestinal (UGI) series is frequently performed in the pediatric radiology department. It is considered the standard imaging tool for diagnosis of structural and functional abnormalities implicating the esophagus, stomach, and proximal small bowel. It perfectly demonstrates congenital malformations affecting the gastrointestinal tract (e.g., hiatus hernia, intestinal malrotation); in addition, it can depict extra-luminal esophageal compression by an anomalous blood vessel or an external compressing mass. Underlying causes of dysmotility disorders such as achalasia are also properly evaluated [1,2,3].

In clinical practice, UGI series is usually performed in many children with symptoms related to the gastrointestinal tracts, particularly vomiting, dysphagia, or abdominal pain. However, unindicated radiological procedure could unnecessarily expose more sensitive patients in the pediatric age group to the detrimental effects of ionizing radiation [4, 5]. Moreover, in view of limited resources and emphasis on quality and safety of radiologic procedures, the risk versus potential benefits should be weighed before proceeding with any procedure.

The diagnostic value of UGI series is explored in a few papers in the literature especially focusing on children with vomiting [2, 6,7,8]. Consequently, there is a remarkable need to evaluate its usefulness in the clinical management of those patients.

The aim of this study was to obviously delineate the clinical indications for UGI series in children and their association with the presence of significant radiological abnormalities aiming for more standardized care for those patients.

Methods

Patient selection

After ethical and internal review board approval, a cross-sectional study was conducted at the radiology unit in our university pediatric hospital. All patients presented to our unit requesting UGI series were initially included in the study; patients with history of corrosive ingestion or prior UGI surgeries were excluded. Patients with incomplete studies or insufficient clinical data were also excluded. Informed oral consent including all procedure details was obtained from all parents or guardians before the procedure.

All patients were subjected to detailed history taking and were instructed to fast for 4 to 6 h before the procedure. Figure 1 refers to history taking sheet adopted in our department.

Fig. 1
figure1

Patient’s history sheet

Procedure detail

UGI series was performed by using TOSHIBA ZEXIRA DRX (MODEL BLF-15B) for pulse fluoroscopy with last screen capture at a rate 3–4 frames/s. Anteroposterior scout film is obtained. Imaging started from the oropharynx to the duodenojejunal flexure using single contrast technique. The contrast is administered by bottle or through a nasogastric tube. AP and lateral views of the esophagus are obtained. Lateral view of the duodenum is then obtained while the contrast passes through its second part. This is followed by AP view of the duodenojejunal flexure. Finally, an AP image was obtained once the contrast had passed into the jejunum. No specific maneuvers or tests were performed to initiate reflux [9, 10].

Data collection

Age, gender, and the primary complaint for each patient are recorded, and all radiologic abnormalities were documented.

Predictor variable

The indication for UGI series was determined based on patients’ symptoms. Indications include vomiting, dysphagia, underweight, aspiration, recurrent chest infection, abdominal pain, change in bowel habits, hematemesis, or melena. As patients might have more than one symptom, a clinical score was calculated for each patient setting 1 point for each symptom as we have recently published [8]. The total number of patients having each symptom as isolated or in association was also calculated.

Outcome variables

The UGI series findings were categorized into normal and abnormal groups where the latter group includes all positive UGI series. The abnormal group was further divided into 4 groups according to the location of the dominant abnormal findings: patients with idiopathic gastroesophageal reflux (GER), patients with findings related to the esophagus, patients with findings related to both stomach and duodenum, and lastly aspiration. The groups of patients with normal and abnormal findings were compared regarding their clinical scores.

Statistical analysis

Different groups were compared regarding patients’ age and gender. They were also analyzed regarding their clinical presentation (vomiting, dysphagia, underweight, aspiration, recurrent chest infection, abdominal pain, change in bowel habit, hematemesis, and melena). Multinomial logistic regression models were built to assess confounding variables and relevant interactions, using backward stepwise regression to determine independent predictors for positive upper GI findings

Numeric variables were provided as the median (IQR) and range. The Kruskal-Wallis H test was used to compare continuous variables and the chi-square test to compare categorical variables. A probability value (p value) less than 0.05 was considered statistically significant. IBM® SPSS® Statistics 21 version was used for statistical analysis.

Results

One hundred and eighteen patients (out of 320 patients who underwent upper GI series) were included in the study. The remaining patients were excluded due to one or more of the previously mentioned exclusion criteria.

Patients ranged in age from 5 days to 17 years (median 2 years). Table 1 summarizes the patients and findings of their UGI series according to their primary complaint. Vomiting was the most frequently encountered symptom (n = 85; 72.6%), and it was non-bilious in 79 patients; however, it was the primary complaint in 75 patients. Thirty-five patients reported recurrent chest infection (30%), and it was the primary complaint in only 11 patients. Dysphagia was reported by 18 patients (15.4%), and it was the primary complaint in 13 patients. Seventeen patients had a history of aspiration, and it was the primary complaint in 9. Additionally, underweight was present in 72 patients (61.5%), abdominal pain was present in 30, changes in bowel habits was reported in 14, and attacks of melena was present in 9 while hematemesis was present in 8.

Table 1 UGI series findings in relation to patients’ symptoms

Forty-nine patients had positive UGI findings (42%). The most detected abnormality was related to the stomach and duodenum (25 patients, 21.4%) (Figs. 2, 3, and 4). Variable degrees of idiopathic gastroesophageal reflux were detected in 16 patients (13.6%) (Fig. 5). Five patients were found to have aspiration (4.3%), and four patients had findings related to the esophagus (Figs. 6 and 7). Table 1 summarizes the detected abnormalities in relation to patients’ symptoms.

Fig. 2
figure2

Different patterns of gastric abnormalities. a Gastric organoaxial volvulus. b Sliding hiatus hernia (asterisk) with dilated esophagus. c Large hiatus hernia containing most of the stomach associated with volvulus. d Left-sided Bochdalek hernia containing the stomach and other bowel loops

Fig. 3
figure3

Two different patients with pyloric obstruction. Upper row neonate with infantile hypertrophic pyloric stenosis. a Plain AP view shows stomach with wave-like contour (caterpillar sign) and paucity of distal abdominal gas. b AP view shows distended stomach with delayed gastric emptying. c Ultrasound scan showing elongated and thickened pyloric canal. d, e Patient with idiopathic acquired gastric outlet obstruction. d AP view shows dilated stomach displacing the surrounding bowel loops. e Oblique view shows the dilated stomach with delayed gastric emptying

Fig. 4
figure4

UGI series of two different patients with duodenal abnormalities presenting with bilious vomiting. a Case of intestinal malrotation and midgut volvulus (arrow). b Ultrasound and Doppler transverse sonogram showing “whirl”-like pattern of small bowel loops. c, d A case of superior mesenteric artery syndrome showing dilated duodenum with persistent filling defect at its third part; sagittal CT angiography showing decreased aortomesenteric angle

Fig. 5
figure5

Different patterns of idiopathic gastroesophageal reflux. a Reflux exceeding the middle third of the esophagus with no luminal dilatation. b Reflux reaching up to the level of mid-esophagus with luminal dilatation. Larger amount of reflux reaching up to the level of upper esophagus without (c) and with luminal dilatation (d)

Fig. 6
figure6

Two patients with esophageal findings. a A 3-year-old boy complaining of vomiting and dysphagia showing peptic stricture (arrow). b A 3-month-old girl presented with unresolved chest infections since birth and history of suction of secretion at birth; oblique view shows evidence of false passage, evident by the presence of false lumen (thin arrows) with true esophageal lumen (thick arrows)

Fig. 7
figure7

UGI series of two patients with findings related to the esophagus. a A 15-year-old boy with lymphoma, presented with dysphagia, and significant weight loss, showing esophageal compression by large homogenous opacity and parrot peak appearance of the lower esophagus consistent with achalasia (arrow). b Axial chest CT showing enlarged mediastinal lymph nodes encasing mediastinal structures (asterisk). c A 14-year-old male patient with Alport syndrome presented with vomiting, epigastric pain, and dysphagia; UGI series shows markedly dilated esophagus (arrows) and hiatus hernia (asterisk). d AP shows dilated esophagus with esophageal wall thickening representing leiomyomatosis (asterisk)

Patients with GER were found to be significantly younger than other groups (median 10 months; range 3–14 months). In addition, GER was found to be the most prevalent abnormality below the age of 6 months. On the contrary, patients with findings related to the esophagus were found to be significantly older than patients with other findings (median 36; range 4–180 months; p = .04) (Fig. 8). There was no significant statistical difference in the incidence of positive or normal UGI series based on patients’ gender (p = .49).

Fig. 8
figure8

Age distribution among different study groups

The calculated clinical score was significantly low in patients with normal UGI series (p < .001). Among 29 patients with a solitary symptom (scored 1), 27 patients were found to have normal findings. Consequently, patients with clinical score 2 or more had significantly more prevalence of abnormal findings (p = .001) (Fig. 9).

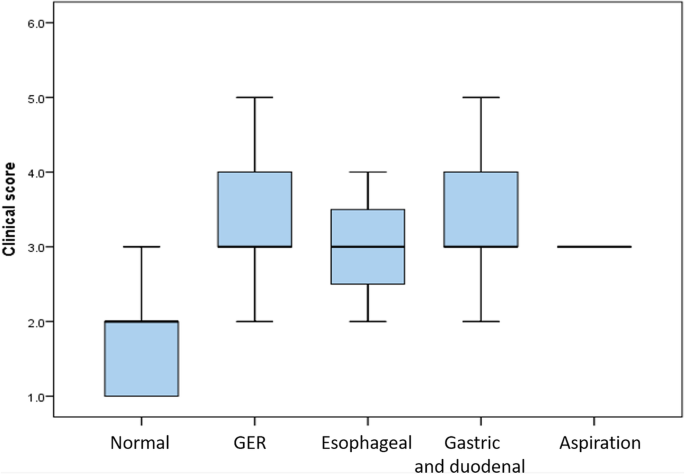

Fig. 9
figure9

The calculated clinical score in different study groups

Forty-three patients (54.4%) out of 79 patients with non-bilious vomiting had a normal UGI series, and 19 patients (24%) had findings related to the stomach (Figs. 2 and3). However, all patients presenting with bilious vomiting had abnormal findings (6 patients) related to the duodenum: four patients with midgut malrotation, one of them had associated volvulus; one patient with duodenal atresia; and another one with SMA syndrome (Fig. 4).

Vomiting, underweight, aspiration, and recurrent chest infection were strong predictors of abnormal findings on UGI series (p = 0.007, 0.001, 0.009, and 0.001, respectively) and increased the diagnostic yield of upper GI series for detection of abnormalities by 3.48, 9.6, 4, and 4.12 times, respectively. However, with multivariate analysis, recurrent chest infection did not show significant results (Table 2).

Table 2 Multinomial logistic regression model assessing independent predictors of upper GI series outcomes

Vomiting was a strong predictor of detection of GER and findings related to the stomach and duodenum on upper GI series (p = .001) as all patients with findings related to the stomach and duodenum and 93.8% of patients with detected GER on UGI series presented with vomiting. After adjusting other variables, vomiting increased the risk of the finding of GER on UGI series by 8.7 times.

Weight loss or failure to thrive and chest-related symptoms were found to be strong predictors of GER on UGI series (p = .001) as 93.8% and 62.5% patients of the GER group had weight loss or failure to thrive, and chest-related symptoms, respectively. After adjusting other variables, weight loss or failure to thrive, and chest-related symptoms increased the risk of finding GERD on UGI series by 20.1 and 7.7 times, respectively.

Dysphagia was a predictor of findings related to the esophagus on upper GI series (p = .034) as two of the four patients of esophageal findings had dysphagia (Figs. 6 and 7). After adjusting other variables, dysphagia increased the risk of esophageal findings on UGI series by 8.4 times.

Aspiration, underweight, and recurrent chest infection were strong predictors of the aspiration group (p = 0.001) as all five patients with detected aspiration on UGI series presented with all these symptoms. Two of them had cerebral palsy, and one had neurodegenerative disorders with pseudobulbar palsy and palato-pharyngeal incoordination.

Also, abdominal pain was a strong predictor of findings related to the stomach and duodenum (p = 0.001) as 68% of findings related to the stomach and duodenum belonged to patients presented with abdominal pain. After adjusting other variables, abdominal pain increased the risk of gastric and duodenal findings on UGI series by 8.9 times.

Patients with changes in bowel habits, hematemesis, or melena were found to be linked to gastric findings, but this correlation did not reach a statistically significant value.

Discussion

The current study analyzed the different radiological findings of UGI series in children in relation to their symptoms. Vomiting was found to be the most common presenting symptom, followed by dysphagia and recurrent chest infection. The majority of abnormal findings were due to underlying gastric and duodenal pathologies (21.4%) followed by GER (13.6%). Vomiting and abdominal pain were found to be significantly associated with findings related to the stomach and the duodenum. In addition, we adopted our new clinical score to increase the diagnostic yield of UGI series, so that the impact of clinical symptoms on the findings of the UGI series is objectively assessed [8]. We found that patients with higher clinical scores (especially score 2 or more) were more likely to have abnormal UGI series.

As previously reported, we have found that idiopathic GER was more prevalent in younger children. Moreover, GER was the most prevalent abnormality in infants below the age of 6 months in whom non-bilious vomiting was the primary complaint. The high prevalence of GER is expected in this very young age group, as 70 to 85% of infants show physiological reflux during their first 60 days of life and it resolves spontaneously without intervention in the first year of life [6, 11, 12, 17]. On the contrary, the age of the patients with abnormal esophageal findings was found to be significantly higher than the age of patients with GER or other positive findings, as previously reported [6]. This is primarily related to the nature of the encountered diseases themselves as peptic stricture occurs after relatively prolonged period of exposure to refluxed acidic gastric content; also, achalasia secondary to lymphoma occurs relatively at an older age. However, in our study, both increasing age and presence of dysphagia did not improve the diagnostic yield of the UGI series. It is likely that expression of dysphagia was used incorrectly by those young patients or their guardians.

Bilious vomiting was found to be a strong significant predictor and improved the diagnostic yield of the upper GI series, as all patients presenting with bilious vomiting showed positive upper GI series findings related to the duodenum (duodenal atresia, midgut malrotation, and superior mesenteric artery syndrome). As previously reported, intestinal malrotation is almost always presented with vomiting characteristically bilious. Although it was reported that intestinal malrotation is classically a disease of infancy [13,14,15], intestinal malrotation should be suspected in every child with repeated attacks of bilious vomiting even beyond the neonatal period (median age of cases of intestinal malrotation was 5.5 years).

Spontaneous aspiration was reported to be frequent in children with feeding difficulties and is most likely to occur in children with underlying neurologic disease [16]. In our study, most of the patients with aspiration had cerebral palsy or neurodegenerative disorders with pseudobulbar palsy and palato-pharyngeal incoordination. Our findings revealed that aspiration symptoms were significantly associated with the detection of aspiration on UGI series, and it significantly improved the diagnostic yield of the UGI series especially if associated with repeated attacks of chest infection/symptoms.

Our study could be limited by the heterogenous group of patients’ population including all children in the pediatric age group up to 18 years of age, which could make conclusions about certain indications for UGI series difficult. Dividing patients into different age range would be appropriate to study each group individually. Moreover, given the young age of most of the patients, most of their complaints were expressed by their parents or guardians, which might not be totally accurate. However, this is a cross-sectional study that included a relatively large number of children presenting with complaints related to the upper gastrointestinal tract and it represents an experience from a tertiary care center. All patients were submitted to a standardized technique allowing a uniform interpretation of all studies in order to reach comprehensive evaluation of all results. In addition, in view of the complex nature of the presenting symptoms, a clinical score was calculated considering patients’ primary complaints and all other associated symptoms in order to study the diagnostic yield of UGI series for those patients with multiple complaints.

Conclusion

Vomiting, dysphagia, or recurrent chest infection was the most common indication for UGI series. Most radiologic findings were due to gastric and duodenal abnormalities followed by GER. Idiopathic GER was more prevalent in young infants. Diagnostic yield of UGI series was relatively higher in patients having two or more symptoms (clinical score 2 or more) and in children with bilious vomiting, aspiration and underweight, or repeated chest infection.
